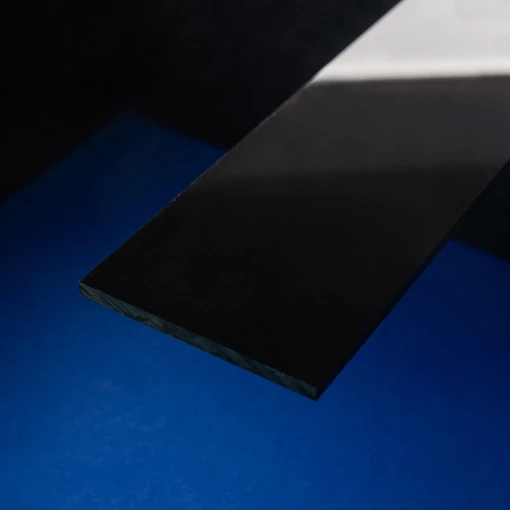

SRT Plastics ABS 3200 is een massieve, ondoorzichtige kunststofplaat die een hoogglans PMMA-toplaag combineert met een extreem slagvaste ABS-kern. Speciaal ontwikkeld voor toepassingen waarin esthetiek én functionele sterkte nodig zijn, levert deze plaat langdurige prestaties in veeleisende industriële omgevingen.
Dankzij de mechanische robuustheid, uitstekende vervormbaarheid en gladde toplaag is ABS 3200 uitermate geschikt voor zowel technische onderdelen als visueel aantrekkelijke toepassingen in onder meer de automobiel, machinebouw en reclamesector.
Maatwerktoepassingen zijn mogelijk op basis van uw ontwerp of specificatie eisen.
ABS 3200 is highly formable and easy to cut, bond, and fabricate. It’s suitable for deep draws and detailed thermoforming, allowing fast production cycles and sharp design detailing without surface loss or cracking. The material retains excellent dimensional stability during forming and post-processing.
This information is available for download in the following tab.
| Category | Classification | Thickness | Product | Test & Standard |
| Building - European (Fire-smoke-droplets) | Bs1d0 | 0,75-6 mm | Polycarbonate - All (Clear, Transparent and Translucent Colours) | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs2d0 | 0,75-6 mm | PETG - All (Clear Transparent and Translucent Colours) | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs1d0 | All | Polycarbonate Multiwall | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs1d0 | 2-6 mm | Polycarbonate Hard Coated Clear | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | E | 6-20 mm | Polycarbonate All Clear and Translucent | EN 13501-1 |
| Building - European (impact safety) | P5A | 4 mm | Polycarbonate All Solid | EN 356 - Ball |
| Building - European (impact safety) | P8B | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - European (impact safety) | P6B | 8 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - European (impact safety) | P6B | 12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - UK (Fire) | 1Y | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | BS 476 part 7 |
| Building - UK (Fire) | 1Y | 4 mm | Polycarbonate Sheet Standard Clear Transparent UVP | BS 476 part 7 |
| Building - European (Suitability for use in Dome lights) | ΔA | 3-6 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Building - European (Suitability for use in Dome lights) | Cu0, Ku1 | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Building - European (Suitability for use in Dome lights) | Cu0, Ku1 | 6 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Electrical - Glow wire testing | 960°C | 2 mm | Polycarbonate Opaque Black | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 850°C | 2 mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 850°C | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 960°C | 5mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Soundwalls - European | Rw 35(-2;-2) dB | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | ISO 717-1 |
| Soundwalls - European | Class 6 Impact | 12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1794-2 |
| Soundwalls - European | Class 2 Fire | 8 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1794-2 |
| Soundwalls - European | Rw = 36 dB | 17 mm | Polycarbonate Sheet Standard Clear Transparent UVP | ISO 717-1 |
| Soundwalls - European | 36 dB Class B3 | 18 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| Soundwalls - European | 37 dB Class B3 | 20 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| Soundwalls - European | 33 dB Class B3 | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| UL94 - Indicative Only | V0 | 10 mm | Polycarbonate Sheet Standard Clear Transparent | UL94 |
| Welding Screens | Pass | 3 & 4 mm | Polycarbonate Coloured FI-01 | ISO 25980 |
| Aircraft - (Fire) | b2 | 1,5-12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | FAR 25.853(a) |
| Safety Glazing in Automotive - Homologation | Homologation | 1.8-12 mm | Polycarbonate Hard Coated - All Colours | ECE R43 |
| Fire Properties in Bus Interior - Annex 6-7-8 | Homologation | 2-20 mm | Polycarbonate Hard Coated - Clear & Grey | ECE R118 |
| Fire Properties in Bus Interior - Annex 6-7-8 | Homologation | > 1.5 mm | PC/ABS 5103.03 R118-7-8 | ECE R118 |
| Oxygen index | 38,2 | 3 mm | Polycarbonate Opaque 7000 (FR) Flame Retardent | ISO 4589-2 |
| Oxygen index | 36,2 | 3 mm | Polycarbonate Sheet (FR) Flame Retardent Clear | ISO 4589-2 |
| Oxygen index | 27,3 | 3 mm | Polycarbonate Sheet Clear | ISO 4589-2 |
| Oxygen index | 27,2 | 3 mm | Polycarbonate Sheet Opaque Black | ISO 4589-2 |
| Food Contact | Approved for Professional Applications | All | Polycarbonate Sheet (FA) Food Approved | EU 10-2011 |
| Food Contact | Approved for Professional Applications | All | Polycarbonate Sheet Clear | EU 10-2011 |
